Huge Update: Free BMW BDC02/BDC03 Key Programming — No Module Removal Required
For automotive locksmiths and IMMO specialists working on BMW G/U/F chassis platforms, BDC key programming has long been a technical bottleneck—especially when dealing with BDC02 and BDC03 modules.
|
Traditional workflow required: Removing the BDC module from the vehicle Performing a bench EEPROM job Risking PCB damage during teardown Increasing labor time and liability |
That process is about to change.
What are BMW BDC02 / BDC03?
BDC stands for Body Domain Controller. This control module is commonly found in new BMW models and is primarily responsible for the key/anti-theft system, central locking, lighting, and communication with vehicle-related ECUs. BMW BDC02 and BDC03 are BMW's second and third generation BDC modules, respectively.
These two BMW BDC modules have high security levels, stronger encryption, and more stringent key data reading requirements, necessitating the latest software and server authorization. Therefore, adding a key to a BMW equipped with these two BDC modules is always very difficult.
What’s New: BMW BDC Key Programming Just Got Easier
1️⃣ No More BDC Module Removal
With the upcoming software release, you can now perform Add Key functions for BDC02, BDC03, and BCP systems without removing the module from the vehicle (where supported).
What this means for your shop:
- No complex disassembly
- No risky bench wiring
- No unnecessary EEPROM handling
- Direct programming via OBD/Programmer workflow
For BDC03 systems, the process allows:
- Reading data from the original working key
- Learning the new key
- No physical removal of the BDC module
This significantly reduces failure points and turnaround time.
2️⃣ From Paid Authorization to Free Access
Previously, this “No Removal” capability required a paid authorization.
To support the locksmith community and improve ROI, Autel is now waiving the fee in the upcoming firmware release.
You gain:
- Dealership-level BDC add key capability
- No recurring authorization costs
- Improved profit margin per BMW job
This directly increases net profitability per vehicle.
Hardware Requirements (Critical)
This is a high-level IMMO function and requires specific hardware:
Required Equipment
-
Tablet: IM508 or IM608 series
-
Programmer: Autel XP400Pro (standard XP400 is NOT supported)
-
Internet: Stable connection required during programming
-
TCP Subscription: Active Autel TCP subscription required
Additional Requirements by System
| System | XP400Pro | G-Box Required | Notes |
|---|---|---|---|
| BDC02 | Yes | Yes (G-Box 2 or 3) | Add Key only |
| BDC03 | Yes | No | Add Key only |
| BCP | Yes | Depends on configuration | Add Key only |
⚠️ “All Keys Lost” is NOT supported. One working key is required.
Applicable Vehicle Models and Application Scenarios
With Autel IM now offering free access to the BMW BDC02/BDC03 non-disassembly modules with added key functionality, the range of covered models has been further expanded, especially the mainstream G-series BMW models in recent years, bringing more high-value business opportunities to locksmiths and repair shops.
Commonly Supported Vehicle Models
Actual vehicle support is subject to the vehicle model list within the Autel IM tablet.
| Model Series | Chassis Code | Remarks |
| BMW 3 Series | G20 | Early BDC02, later BDC03 |
| BMW 5 Series | G30 / G38 | Mainstream G-series models |
| BMW X3 | G01 | Common BDC02/BDC03 |
| BMW X4 | G02 | Same platform |
| BMW X5 | G05 | Mostly BDC03 |
| BMW X6 | G06 | Mostly BDC03 |
| BMW X7 | G07 | Mostly BDC03 |
| BMW 4 Series | G22 / G23 / G26 | New G Series |
| BMW 2 Series | G42 | New generation model |
Typical Application Scenarios
This feature is particularly suitable for the following common business scenarios:
- Add a spare key: Quickly add a spare key for car owners who only have one key.
- Used car key replacement: Replace a used car with a second key, increasing the vehicle's value.
- High-end BMW key service: Handling previously more complex BDC03 models.
- Non-disassembly operation: Avoids disassembling the BDC module, reducing operational risks.
- On-site service: More suitable for mobile locksmiths and on-site operation environments.
APB113 Adapter Board – Strongly Recommended
To simplify and stabilize the process, Autel has released an operation tutorial video demonstrating use with the APB113 adapter board.
|
Why Use APB113? 1. Improved operational stability 2. Pre-configured wiring harness included 3. Direct key soldering without manually locating XP400Pro pinouts 4. Reduced setup time and wiring errors |
| 🎥 Connection Guide | 🎥 Operation Guide |
Required Key Type

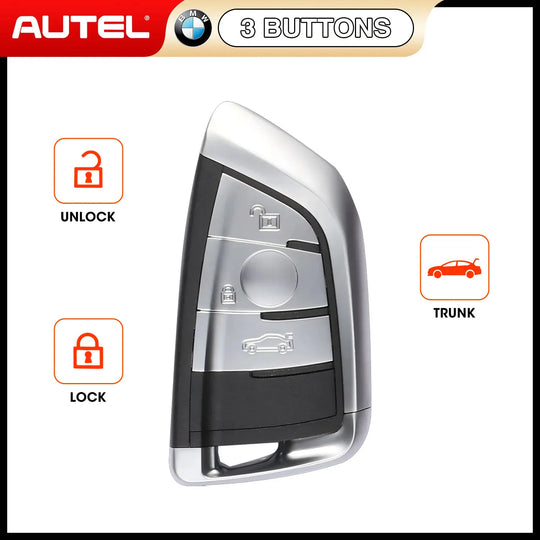

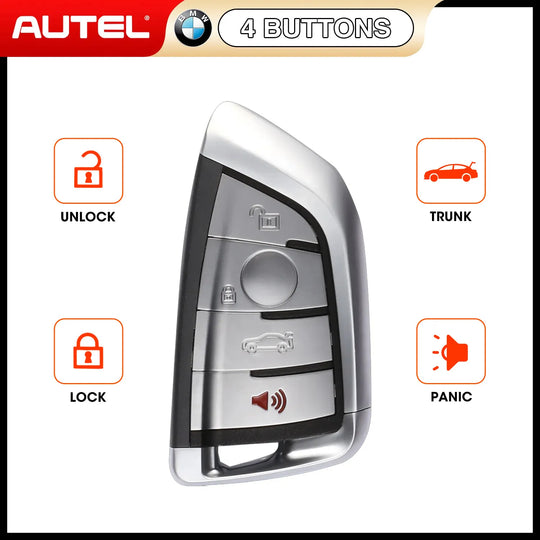

Both BDC2 and BDC3 systems require generating Autel BMW IKEY smart keys (3-button or 4-button configurations).
| Ensures: Faster turnaround / Higher job completion rate / Increased profit margin |
Add Key Operation Process
Step 1: Update and Upgrade the Autel Key Programming Tool
Although Autel officially supports adding a key function for special BDC modules for free, existing Autel IM508S Pro/IM608S II tablet owners must upgrade their devices to the latest version to ensure this function works. This is the first step before proceeding with further operations.
Step 2: Remove the Original Key Chip
Adding a key to a BMW BDC02/BDC03 requires soldering the original key chip onto an APB113 circuit board to connect it to the XP400 Pro key programmer.
Note: This adapter is not sold separately. You can purchase the Autel IMKPA Adapter Kit, which includes various adapters to suit different vehicles.
Alternatively, if you do not currently have Autel key programming tools, you can purchase the Autel IM608S II Full Kit, which includes IMKPA, APB112, and GBOX3.
Step 3: Connect the Scanner, XP400 Pro, and Vehicle
Connect the scanner to the vehicle via the car's OBD port to establish communication. At the same time connect the XP400 Pro to the scanner to ensure proper communication between all devices.
Step 4: Locate the Key Addition Function
Operating Path:
MaxiIM > IMMO > Select Car Model (Auto / Manual) > Control Unit > BDC03 Immobilizer > Key Operation > Add Key > Encrypted / Unencrypted
The exact path may vary depending on the Autel tool and BMW model. Once the "Add Key" option is located and XP400 Pro is connected, you can proceed.
Step 5: Start Adding the BMW Key
- Read the vehicle information and enter the 17-digit VIN to determine the smart key frequency.
- Place the original working key chip in the XP400 Pro sensor area to read its data.
- Connect the soldered key plate to the APB113 board and install it onto the XP400 Pro.
- Insert a blank key into the sensor slot to generate a dealer key. Wait 1–3 minutes for completion.
Step 6: Test the Newly Added Key
After the key is generated, test its functions including locking/unlocking doors, operating windows, and starting the vehicle. Avoid storing old and new keys together to prevent signal interference.
Final Takeaway
BMW BDC key programming has traditionally required high labor input and technical risk.
With the upcoming Autel firmware release:
-
No BDC module removal (where supported)
-
Free authorization upgrade
-
Streamlined Add Key workflow
-
Enhanced ROI for locksmiths
Monitor your device notification center, update immediately once available, and ensure your XP400Pro and required adapters are ready.
Work smarter. Increase margin. Dominate BMW IMMO services in your area.
