Cloning ECU to Replace Modules: A BMW Case Study with Autel IM608S II
A damaged ECU can quickly become an expensive and frustrating issue for BMW owners and automotive technicians. In many cases, repairing a faulty ECU is difficult or impossible, making replacement the only solution. However, a brand-new ECU is expensive and usually does not contain the vehicle’s original VIN, immobilizer data, mileage, coding information, or personalized settings.
This is where BMW ECU cloning becomes extremely useful. By copying the original ECU data to another compatible ECU, technicians can replace a damaged module without losing important vehicle information. ECU cloning not only saves time and money but also avoids complicated relearning and programming procedures.
In this guide, we’ll explain what ECU cloning is, when it is needed, and how to clone a BMW ECU using an Autel Key Programming Tool such as the Autel IM608S II with G-BOX3.
What Is ECU Cloning?
ECU cloning is the process of transferring software, EEPROM data, FLASH data, VIN information, immobilizer data, and vehicle configuration from an original ECU to another compatible ECU. After cloning, the replacement ECU behaves exactly like the original module installed in the vehicle.
For BMW vehicles, ECU cloning is especially important because BMW ECUs store critical information related to the immobilizer system, engine management, mileage, and vehicle coding. Without cloning, installing a replacement ECU may require extensive programming, adaptation, and synchronization procedures.
When Is BMW ECU Cloning Necessary?
BMW ECU cloning is commonly performed in several situations:
- ECU hardware failure or water damage
- Engine ECU malfunction causing no-start conditions
- Corrupted ECU software or chip failure
- Replacing a damaged ECU with a used ECU
- Upgrading to another compatible ECU
- Avoiding complicated immobilizer relearning procedures
- Preserving original VIN, key data, and mileage information
Instead of programming a replacement ECU from scratch, cloning allows the vehicle to continue operating exactly as before.
Tools Required for BMW ECU Cloning
Before starting the cloning process, prepare the following equipment:

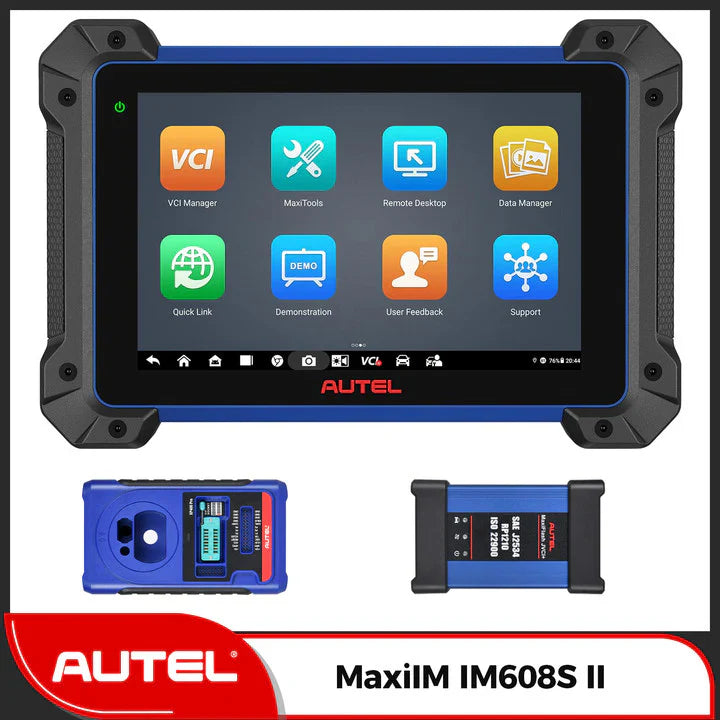

- Autel IM608S II or compatible Autel key programming tool

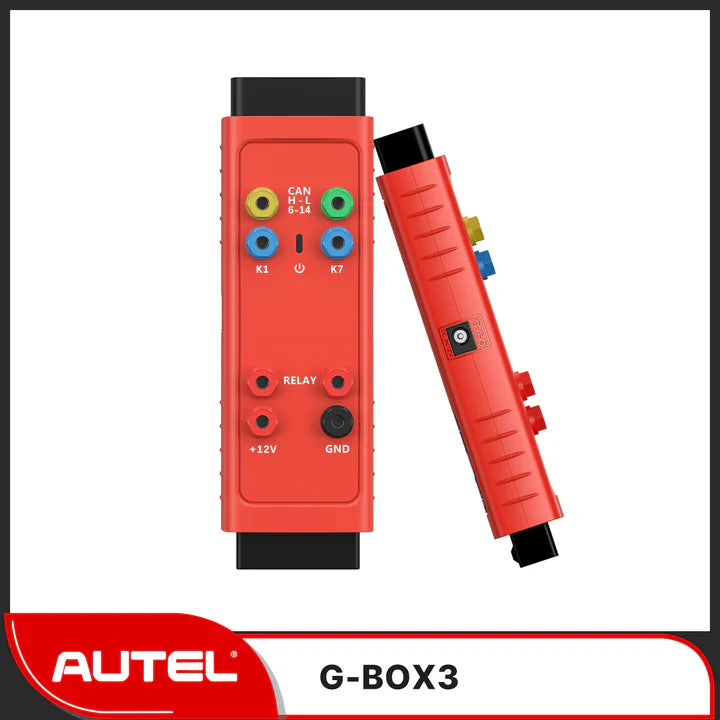

- Autel G-BOX3

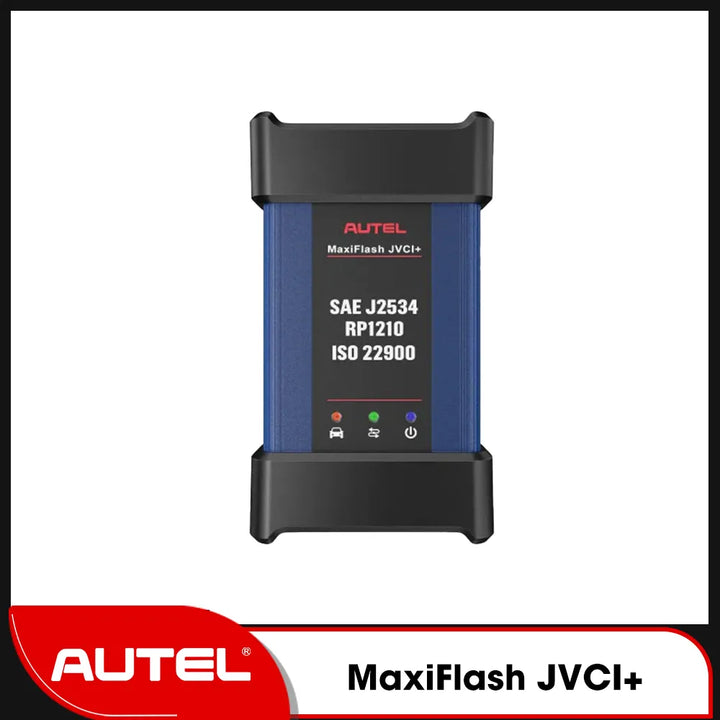

- MaxiFlash JVCI+
- Compatible BMW ECU
- Bench wiring cables and adapters
- Stable DC power supply
- Laptop or tablet with sufficient battery power
A clean and static-free work environment is also recommended to prevent damage to sensitive ECU components.
How to Clone a BMW ECU Using Autel IM608S II
The following example demonstrates the cloning process for a BMW BOSCH MEVD17.2.9 ECU.
First, power on the Autel IM608S II and enter the ECU cloning menu. Navigate through the following path:
MaxiIM > IMMO > BMW > System Selection > Engine > Direct > Bench > F Chassis > BOSCH TC1797 MEVD17.2.9
Select the correct BMW model, year, and engine type to ensure compatibility.
Next, connect the Autel IM608S II, MaxiFlash JVCI+, and G-BOX3 together according to the wiring diagram displayed on the screen. Then connect the original ECU to the G-BOX3 using the correct pin assignments. Double-check every connection carefully before applying power.
Once the setup is complete, use the Autel tool to read the EEPROM and FLASH data from the original ECU. This process may take several minutes depending on the ECU type. After the data is successfully read, save the backup file securely.
After backing up the original ECU data, disconnect the old ECU and connect the replacement ECU to the G-BOX3. Follow the same wiring diagram carefully to ensure proper communication.
The next step is writing the saved EEPROM and FLASH data to the replacement ECU. Once the writing process is completed successfully, the new ECU will contain the same data and configuration as the original module.
Finally, reinstall the cloned ECU into the BMW vehicle and verify proper operation. In most cases, the engine should start normally without additional immobilizer synchronization or coding procedures.
Advantages of BMW ECU Cloning
Using the Autel ECU cloning function provides several benefits:
- Saves money compared to purchasing a brand-new ECU
- Preserves VIN and immobilizer data
- Retains original vehicle coding and mileage information
- Reduces programming and adaptation time
- Supports used ECU replacement
- Improves repair efficiency for automotive locksmiths and technicians
For workshops and professional locksmiths, ECU cloning has become an essential function for advanced vehicle diagnostics and module replacement.
Important Notes About ECU Cloning
Although ECU cloning is highly effective, it requires proper technical knowledge and careful operation. Incorrect wiring, unstable voltage, or interrupted programming can permanently damage the ECU.
Always use a stable power supply and follow the official wiring diagrams provided by Autel. If you are unfamiliar with bench programming or ECU repair, it is recommended to seek assistance from a qualified automotive technician.
Conclusion
BMW ECU cloning is an efficient solution for replacing damaged or malfunctioning ECUs while preserving critical vehicle data. With tools like the Autel IM608S II and G-BOX3, technicians can clone BMW ECUs quickly and accurately, avoiding expensive dealership programming procedures and minimizing vehicle downtime.
As modern BMW electronic systems become increasingly complex, ECU cloning technology continues to play a vital role in automotive diagnostics, immobilizer repair, and ECU replacement services.
