What is Autel MaxiFlash JVCI+?
As a multi-protocol Pass-Thru vehicle interface, MaxiFlash JVCI+ is a fully compliant SAE J2534-1 & SAE J2534-2 device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance, and flexibility.
Features:
1. Works with IM608 II/ IM608 PRO II to Program ECUs on Specific BMW/ BENZ for Specific Functions.
2. Fully Compatible With D-PDU, SAE J2534 & RP1210 Reprogramming Standards and Performs Standard Pass Thru J2534 Functionality.
3. Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM Diagnostics.
4. Built-In Wireless with Advanced Networking Functions and Data Storage. Fast performance ensures reprogramming even the newest controllers & Internet upgradable and updatable.
The MaxiFlash JVCI+ device is a D-PDU, SAE J2534 & RP1210 compliant PassThru programming interface device. Using the updated OEM software, it is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.
Communication Capability
The MaxiFlash JVCI+ device supports Bluetooth (BT) and USB communications. It can transmit vehicle data to the tablet with or without a cable connection. In open areas, the working range of the transmitter through BT communication is up to 328 feet (about 100m). If the signal is lost due to being taken out of range, communication will be restored once the tablet is within range.
Autel JVCI+ can also be used as J2534 passthru for OE software /subscription to perform reprogramming / key programming/ multi-line OEM diagnostics etc.
Check compatible manufacturer and software list.
ECU PROGRAMMING FOR BENZ/ BMW
Replacing the Existing Software/ Firmware in the ECUs
Programming New EcUs for BENZ/ BMW
Reprograming Adaptive Data
ECU Adaptation/ Reprogramming after Refit
Fixing Software-controlled Drivability & Emission Issues
Enhance the Durability of Mechanical Parts
Improve Fuel Efficiency
Reduce Power Loss
For Benz
Post-programming Learning Function
Programming Restoration
Vehicle Configuration Synchronization
Read/ Write Adjustment Value
For BMW
Support program to 2211
Support HTTP Program
Automatic Calculation programming file
Personalized Data Backup
CAN FD / DoIP PROTOCOLS
J2534 BRING CAN FD / DoIP/ SAE J2534/ D-PDU/ RP1210 PROTOCOLS
CAN FD: For MY2020+ FM Models, No Need CAN FD Adapters
DoIP: For BMW E/ F/ G Chassis, Jaguar, and Land Rover vehicle make.
Quick Start Guide:
1. Download Maxi PC Suite from: https://www.autel.com
2. Click "setup.exe"
3. Wait for installation to complete
4. Select the installation language
5. Connect J2534 Box via USB to PC / Laptop
6. Update all available software and programs.
Difference Between JVCI and JVCI+:
Theoretically, all VCIs of our company can be mixed (physically). Mixing is not recommended for two reasons.
1. The standard equipment and VCI functions have been tested, but mixing has not been fully tested. It is uncertain whether there are compatibility issues, and the results on a specific vehicle are not guaranteed.
2. The reminders in the device are all for the standard VCI. Some key reminders will not be prompted when using the low-end VCI, for example,
* IM608pro II comes standard with JVCI+, which can support DOIP and CANFD, but there is no reminder.
* If IM608pro II is used with JVCI, an adapter must be used when using DOIP and CANFD, but there will be no reminder.
Autel MaxiFlash JVCI+ J2534 ECU Programming Device Specification:
Communications: Wireless BT V2.1 + EDR,USB 2.0
Wireless Frequency: Wireless BT V2.1+EDR, 2.4GHz
Input Voltage Range: 12VDC to 24VDC
Supply Current: 170mA @ 12VDC 100mA @ 24VDC
Operating Temperature: 0°C to +60°C (ambient)
Storage Temperature: -65°C to +100°C (ambient)
Dimensions Length: 149 mm (5.87") Width: 86mm (3.38") Height: 35 mm (1.28")

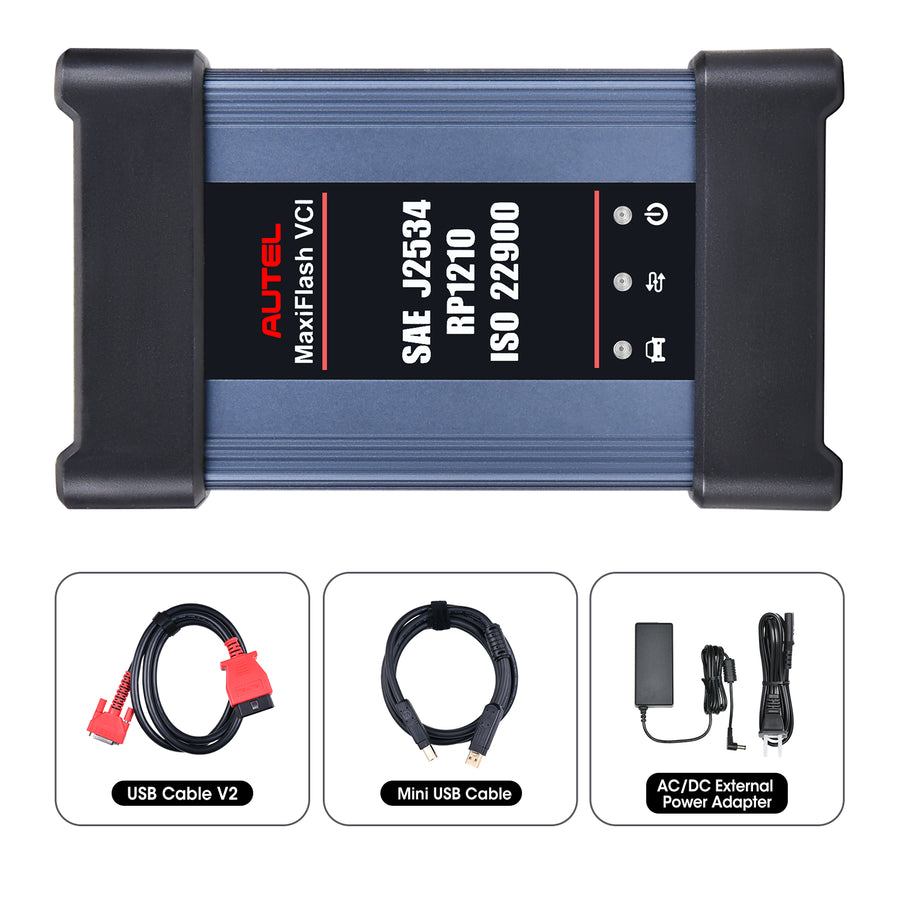

Package List:
1pc x Autel MaxiFlash JVCI+ J2534 ECU Box
Description
What is Autel MaxiFlash JVCI+?
As a multi-protocol Pass-Thru vehicle interface, MaxiFlash JVCI+ is a fully compliant SAE J2534-1 & SAE J2534-2 device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance, and flexibility.
Features:
1. Works with IM608 II/ IM608 PRO II to Program ECUs on Specific BMW/ BENZ for Specific Functions.
2. Fully Compatible With D-PDU, SAE J2534 & RP1210 Reprogramming Standards and Performs Standard Pass Thru J2534 Functionality.
3. Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM Diagnostics.
4. Built-In Wireless with Advanced Networking Functions and Data Storage. Fast performance ensures reprogramming even the newest controllers & Internet upgradable and updatable.
The MaxiFlash JVCI+ device is a D-PDU, SAE J2534 & RP1210 compliant PassThru programming interface device. Using the updated OEM software, it is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.
Communication Capability
The MaxiFlash JVCI+ device supports Bluetooth (BT) and USB communications. It can transmit vehicle data to the tablet with or without a cable connection. In open areas, the working range of the transmitter through BT communication is up to 328 feet (about 100m). If the signal is lost due to being taken out of range, communication will be restored once the tablet is within range.
Autel JVCI+ can also be used as J2534 passthru for OE software /subscription to perform reprogramming / key programming/ multi-line OEM diagnostics etc.
Check compatible manufacturer and software list.
ECU PROGRAMMING FOR BENZ/ BMW
Replacing the Existing Software/ Firmware in the ECUs
Programming New EcUs for BENZ/ BMW
Reprograming Adaptive Data
ECU Adaptation/ Reprogramming after Refit
Fixing Software-controlled Drivability & Emission Issues
Enhance the Durability of Mechanical Parts
Improve Fuel Efficiency
Reduce Power Loss
For Benz
Post-programming Learning Function
Programming Restoration
Vehicle Configuration Synchronization
Read/ Write Adjustment Value
For BMW
Support program to 2211
Support HTTP Program
Automatic Calculation programming file
Personalized Data Backup
CAN FD / DoIP PROTOCOLS
J2534 BRING CAN FD / DoIP/ SAE J2534/ D-PDU/ RP1210 PROTOCOLS
CAN FD: For MY2020+ FM Models, No Need CAN FD Adapters
DoIP: For BMW E/ F/ G Chassis, Jaguar, and Land Rover vehicle make.
Quick Start Guide:
1. Download Maxi PC Suite from: https://www.autel.com
2. Click "setup.exe"
3. Wait for installation to complete
4. Select the installation language
5. Connect J2534 Box via USB to PC / Laptop
6. Update all available software and programs.
Difference Between JVCI and JVCI+:
Theoretically, all VCIs of our company can be mixed (physically). Mixing is not recommended for two reasons.
1. The standard equipment and VCI functions have been tested, but mixing has not been fully tested. It is uncertain whether there are compatibility issues, and the results on a specific vehicle are not guaranteed.
2. The reminders in the device are all for the standard VCI. Some key reminders will not be prompted when using the low-end VCI, for example,
* IM608pro II comes standard with JVCI+, which can support DOIP and CANFD, but there is no reminder.
* If IM608pro II is used with JVCI, an adapter must be used when using DOIP and CANFD, but there will be no reminder.
Autel MaxiFlash JVCI+ J2534 ECU Programming Device Specification:
Communications: Wireless BT V2.1 + EDR,USB 2.0
Wireless Frequency: Wireless BT V2.1+EDR, 2.4GHz
Input Voltage Range: 12VDC to 24VDC
Supply Current: 170mA @ 12VDC 100mA @ 24VDC
Operating Temperature: 0°C to +60°C (ambient)
Storage Temperature: -65°C to +100°C (ambient)
Dimensions Length: 149 mm (5.87") Width: 86mm (3.38") Height: 35 mm (1.28")
Package List:
1pc x Autel MaxiFlash JVCI+ J2534 ECU Box
